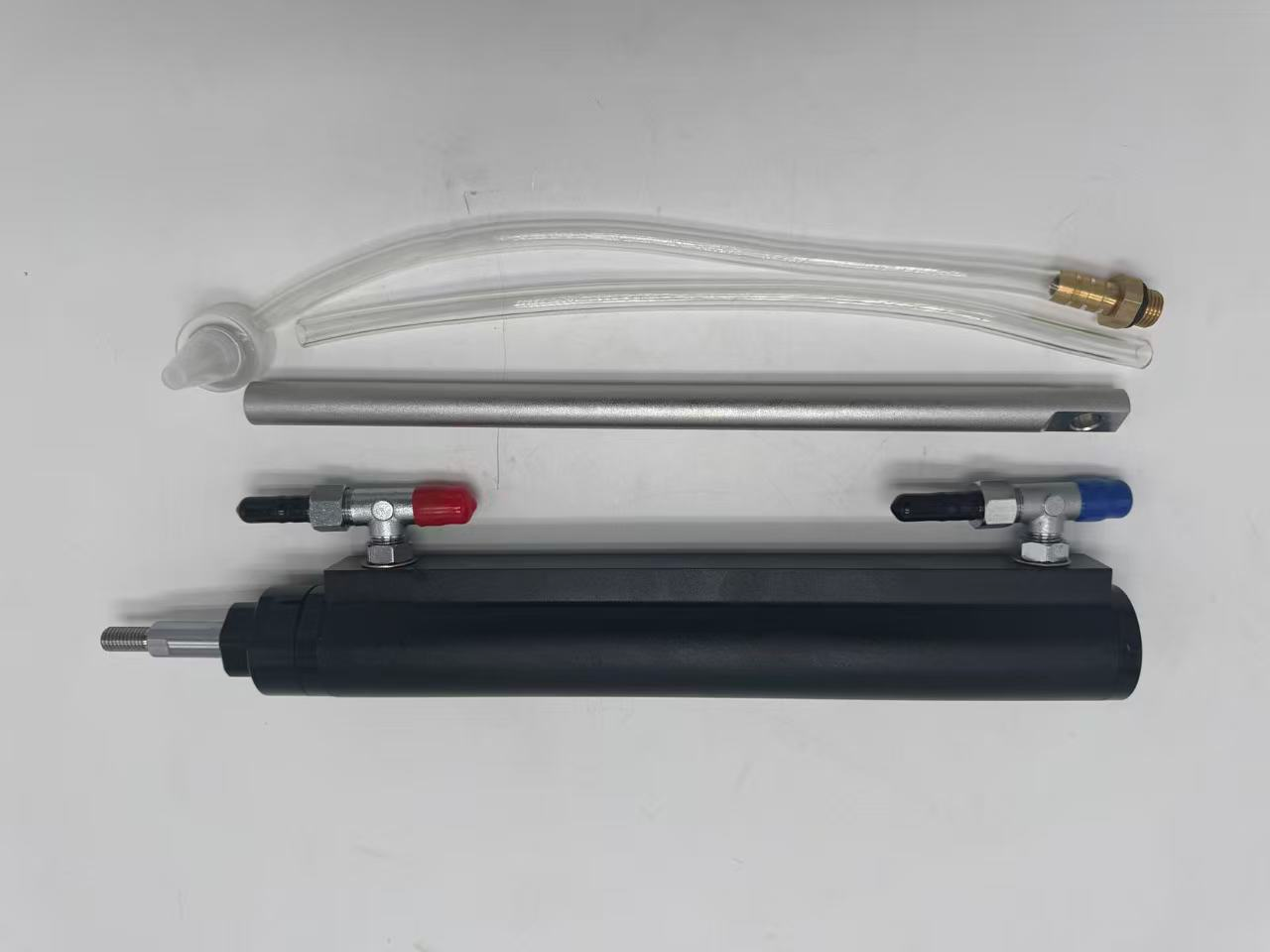

Side Mount Outboard Hydraulic Steering Cylinder
availability:
in Stock(999)
Package Dimensions：
24*5.9*0.35 inches;
5.3 Pounds
- Main colors: Black
- Release date:
- Product number:
Product Introduction :
Side mount design, max working pressure 1000 PSI, fits engines up to 200 HP
Core components are made of anodized aluminum alloy, stainless steel and nickel-plated copper, offering excellent corrosion resistance for watercraft operating in high salt spray environments. Equipped with wear-resistant sealing materials, its multi-layer composite sealing structure effectively prevents hydraulic oil leakage and greatly extends service life of the unit.
This outboard steering cylinder features a side-mount structure, compatible with most outboard engines available on the market. It performs optimally on boats equipped with outboard tilt functions and supports a maximum tilt angle within 90 degrees. Serving as a steering support unit, this product fits all outboard motors with a rated power of 200 horsepower (HP) or below.
Steering Mechanism:
Cylinder bore diameter: 32 mm
Piston rod diameter: 14 mm
Total steering stroke: 200 mm
