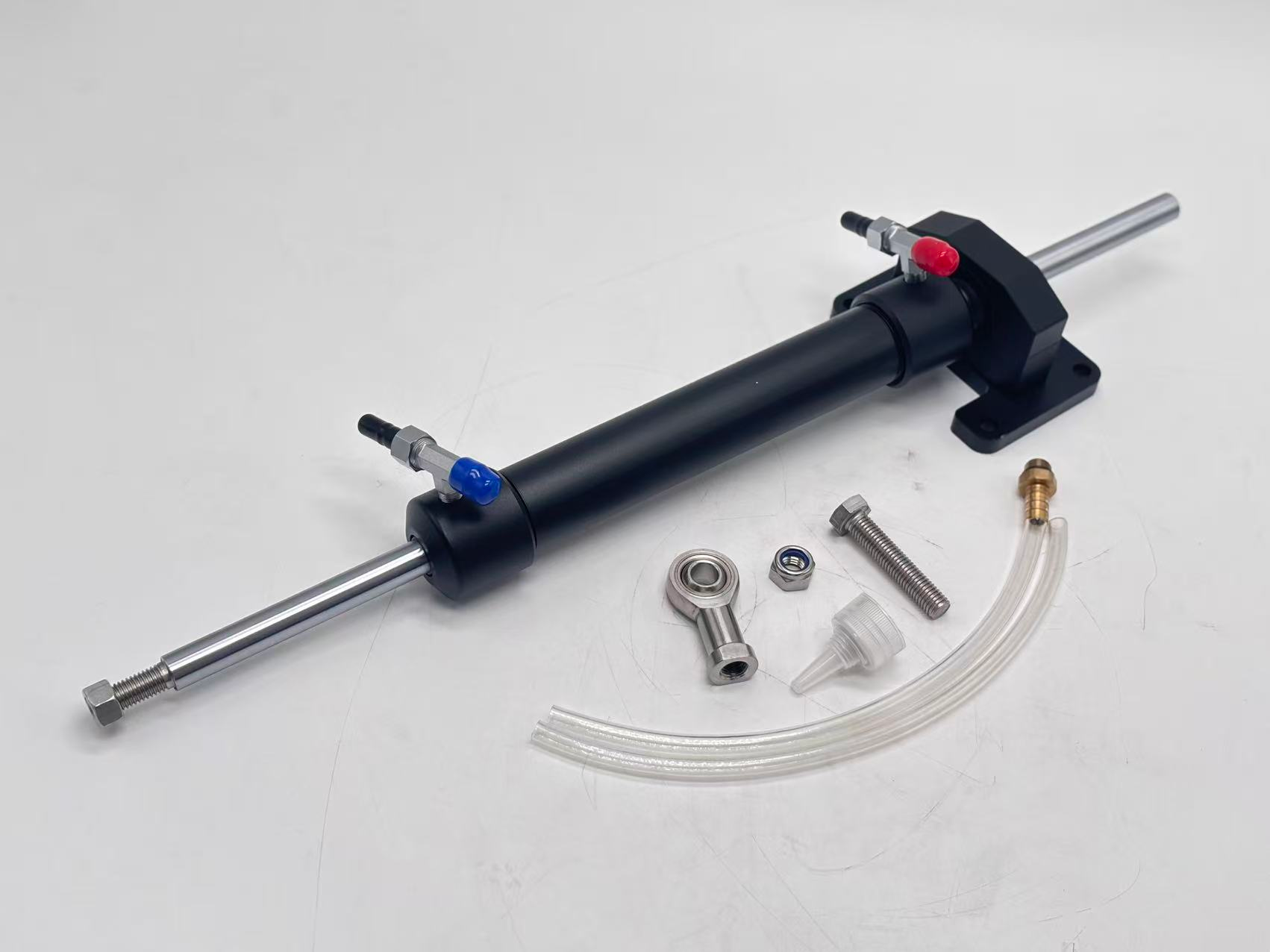

Inboard Hydraulic Steering Cylinder
availability:
in Stock(999)
Package Dimensions：
25.6*7*5.1 inches;
7.1 Pounds
- Main colors: Black
- Release date:
- Product number:
Product Introduction :
Hydraulic Steering Cylinders for Vessels Up to 200 Horsepower,The cylinder supports a maximum working pressure of 1000 PSI.
Core components are fabricated from anodized aluminum alloy, stainless steel and nickel-plated copper, delivering superior corrosion resistance for watercraft operating in high salt spray environments. Fitted with wear-resistant sealing materials, its multi-layer composite sealing structure effectively stops hydraulic oil leakage and greatly extends the service life of the equipment.
This outboard steering cylinder adopts a through-shaft connection design, compatible with most marine engines available on the market. As a steering support unit, this product fits all inboard gasoline engines and diesel engines with a rated power of 200 horsepower (HP) or less.
Steering Mechanism:
Cylinder bore: 32 mm
Piston rod diameter: 16 mm
Total lift stroke: 200 mm
